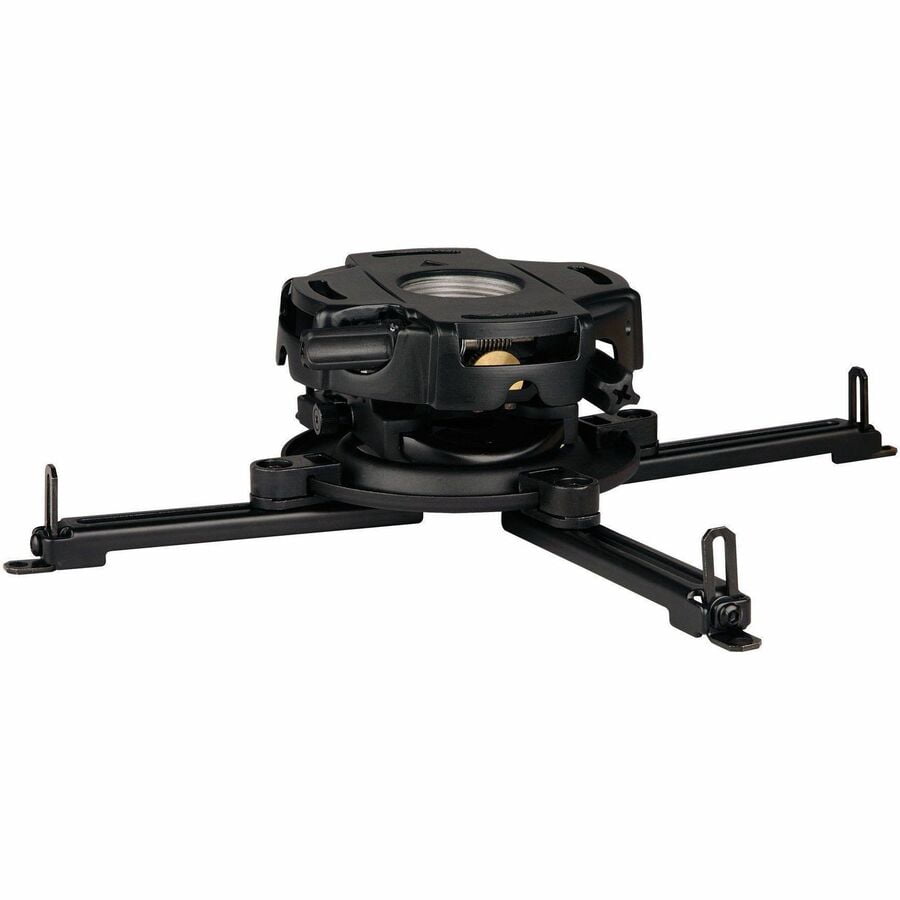

Peerless PRG-UNV Precision Gear Projector Mount PRGUNV
Sale price
$141.22
Regular price $201.74
Skip to product information
Peerless PRG-UNV Precision Gear Projector Mount PRGUNV
Sale price
$141.22
Regular price $201.74
General Information
| Peerless-AV's PRG Precision Gear Projector Mount is simplifying the way image alignment is done. The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place - it will hold its position even during projector maintenance. With Peerless-AV' PRG Precision Gear Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles. All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount, please refer to the Recommended Accessories. |
?
Product Information
| Device Supported: | Projector |
| Maximum Load Capacity: | 50 lb |
| Adjustable Height: | Yes |
| Maximum Adjustable Height: | 2.14" |
?
Physical Characteristics
| Color: | Black |
| Material: | Aluminum |
| Weight (Approximate): | 2.95 lb |
?
Miscellaneous
| Package Contents: |
PRG-UNV Precision Gear Projector Mount Includes:
|
| Additional Information: |
|
| Compatibility: | Projector |
| Certifications & Standards: | UL |
| Country of Origin: | China |
?
Warranty
| Limited Warranty: | 5 Year |
- 1 x Projector mount assembly
- 1 x Adapter plate
- 2 x Concrete anchor
- 2 x (#14 x 2.5) Phillips hex head wood screw
- 1 x (#10-32 x 1/4") Socket pin screw
- 1 x 1/4" Flat washer
- 4 x #6 Flat washer x .5 OD
- 1 x 2 mm Security allen wrench
- 1 x 4 mm Security allen wrench
- 4 x (M3 x 8 mm) Serrated washer head socket pin screw
- 4 x (M4 x 10 mm) Serrated washer head socket pin screw
- 4 x (M5 x 10 mm) Serrated washer head socket pin screw
- 4 x (M6 x 10 mm) Serrated washer head socket pin screw
- Tilt- ? 20?, Roll ? 10?
- Pre-assembled design reduces installation time
- Quick release mechanism to easily service projector
- Two adjustment knobs control projector image alignment
- Horizontal wrench access slots make flush mounting installations fast & easy
- Cable management allows cables to be routed through projector mount out of sight
- Swivel (Yaw) 360? (when attached to an extension column), +/- 15? (when flush mounted)
- Specifications: Tilt: ±20°, Roll: ±10°, Swivel: 360° when mounted on extension column ±15° when flush mounted on ceilings
- Pre-installed security screws provide optional tilt and roll lock to prevent tampering with adjustment knobs
- Spider® Universal Adapter Plate extends up to 17.63" (448 mm) to fit most projector models
- SKU : 0735029249887
- Condition : NEW
- MPN : PRGUNV
- BRAND : Peerless
